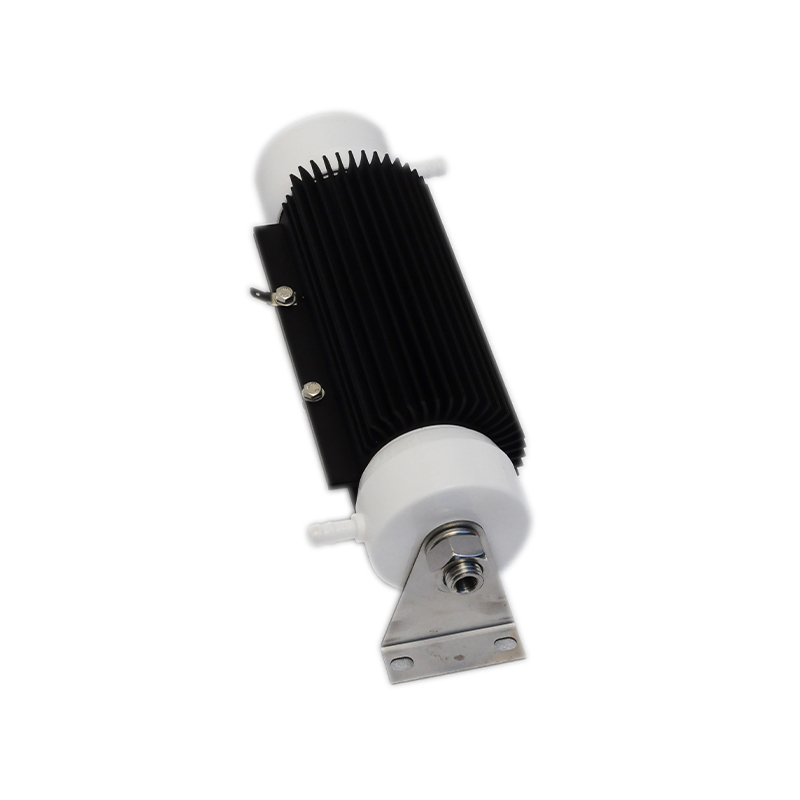

20g Ceramic Ozone Generator Tube

The ozone tube adopts micro-gap strong corona discharge, corrosion-resistant materials and ceramic caps. The dielectric body is made of high-purity ceramic materials, sintered at high temperature, and finely ground. It has the characteristics of high frequency, low voltage, high concentration and low power consumption. It is suitable for dry air source and oxygen source, and has a very long life.

Consult

Features
Technical Indicators
Overall Dimension

The ozone generator uses a special high-purity ceramic tube as a dielectric, which has the advantages of high dielectric constant and long life. The inner electrode is made of high-quality stainless steel, the discharge gap is uniform, and the ozone concentration is high. This product uses high-quality fluororubber seals and mechanical seals, which are easy to install and maintain. Notes: 1. Please use clean and dry oxygen as the air source. 2. Please connect the ground wire when installing the fixed bracket. 3. Please connect the red high-voltage wire to the outer shell of the generator tube, and the yellow high-voltage wire to the generator tube bracket. 4. The high-voltage connection line must be installed firmly. 5. When installing the high-voltage power supply, the bottom must be kept at a safe distance of 30 mm from the installation fixing plate. 6. The safety distance between the high-voltage power supply and the generator tube should not be less than 100 mm. 7. The safety distance between the high-voltage power supply and the high-voltage power supply should not be less than 100 mm. 8. The recommended air intake flow rate of the generator tube is 0.3-1m3/h. 9. The cooling water temperature must not be lower than the ambient temperature by 5 degrees Celsius. 10. Please install the water cooling pipe vertically, and the cooling water should be inlet from the bottom and outlet from the top to ensure the cooling effect. 11. There must be water flowing out of the outlet before the pipe works, and it is forbidden to work without water. Main uses of ozone generating pipe Applied in drinking water, sewage, industrial oxidation, food processing and preservation, space deodorization and sterilization, medical equipment and other fields.
Generator tube size: L: 320 W: 115 H: 110 (mm) Ozone output: 20g/H Ozone concentration: 100-75mg/L Oxygen flow rate: 1-5L/min Interface size: Φ９ (mm) Generator tube installation size: 228*55 (MM) Intake pressure: ≦０.1mpa Cooling method: inner electrode water cooling, outer electrode forced air cooling Cooling water pressure: <0.1mpa Cooling water flow rate: 10L/min Cooling water temperature: not less than 5 degrees below ambient temperature Ozone tube weight: 2.20 (kg)
